This page explains the behavior and settings of the Elapsed Time Branch step.

Branches based on the elapsed time since the scenario started.

For example, you can automatically stop the scenario after 1 hour.

You can select from the following condition types:

• Equal to: Condition is met when the elapsed time equals the specified value
• Not equal to: Condition is met when the elapsed time does not equal the specified value
• Greater than or equal to: Condition is met when the elapsed time is greater than or equal to the specified value
• Less than or equal to: Condition is met when the elapsed time is less than or equal to the specified value
• Within range: Condition is met when the elapsed time is within the specified minimum and maximum values (inclusive)

A list of actions to execute when the condition is met.

A list of actions to execute when the condition is not met.

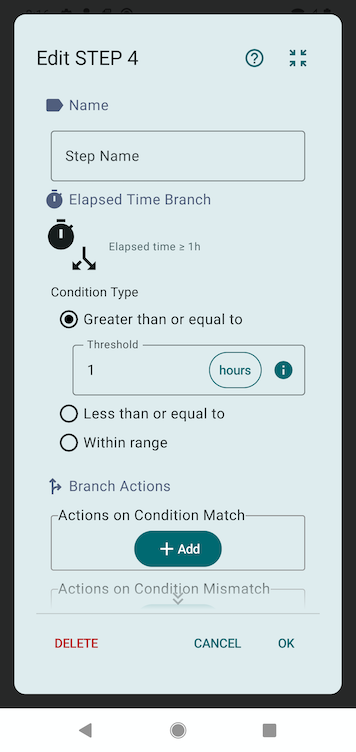

Set the condition type to "Greater than or equal to" and the value to 1 hour. Configure "End all scenario playback" in Actions on Success. This will automatically stop the scenario after 1 hour has elapsed since it started.

Set the condition type to "Less than or equal to" and the value to 10 minutes. Configure the desired actions in Actions on Success. After 10 minutes have passed, the condition will not be met and those actions will be skipped.

Set the condition type to "Within range" with minimum value of 30 minutes and maximum value of 1 hour. Only during this time window will the Actions on Success be executed.
